Product Description

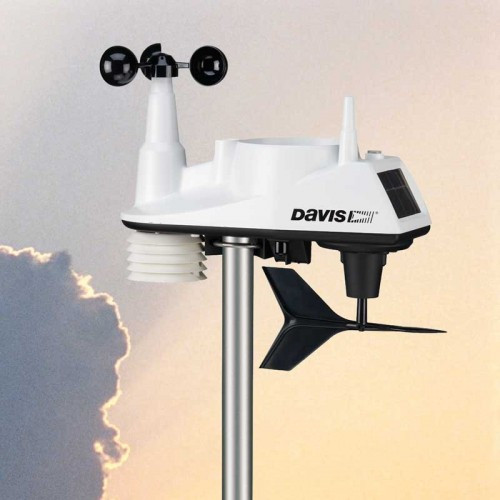

The fully-integrated, corrosion-proof sensor suite is built to take all the weather your location can give. The ISS combines a rain collector, temperature/humidity sensors, and anemometer/direction vane into a single unit for optimum performance and durability. The smaller profile sensor suite is designed to minimize visual impact in your yard or on your roof.
Note: This is the ISS Only and comes without a console
Features:
- Wireless - Frequency-hopping spread spectrum radio ensures consistent transmission up to 300 m from integrated sensor suite to console.
- Rain Collector- Self-emptying tipping spoon measures rain with 0.2 mm resolution.
- Anemometer - Vantage Vue records wind speeds as low as 3 km/h and as high as 290 km/h.
- Weather-proof Cover - Corrosion-resistant cover provides durability in extreme conditions. Electronics are potted or over-moulded for added moisture shielding.
- Radiation Shield - Provides excellent protection from solar radiation and other sources of radiated and reflected heat.
- Temperature and Relative Humidity - Provides outside temperature readings from -40°C to 65°C. Also measures relative humidity from 0 to 100%.
- Easy Installation - Installs easily and quickly with included mounting hardware kit.
- Wind Direction - Measures wind direction in compass points or degrees.
- Solar Panel - Energizes the station during the day. On-board super capacitor provides power at night. Lithium battery provides backup when needed.
- Bubble Level - Allows for more accurate installation and better data collection.
Specifications:
- Outdoor temperature range: -40°C to 65°C (-40°F to 149°F)
- Indoor temperature range: 0°C to 60°C (32°F to 140°F)
- Humidity range: 0% to 100%
- Rain volume display 0 to 6,553mm, resolution 0.2mm
- Wind speed: 0 to 241 km/h
- Barometric pressure: 610hPa to 1134hPa
- Transmission range: up to 300m (1,000 feet) line of sight
- Power consumption: solar power energises the station during the day, on-board super capacitor provides power at night, lithium battery provides backup when needed
- Transmission frequency: spread spectrum
